Mechanical DownTime App
Introduction
Section titled “Introduction”The Mechanical DownTime (MDT) application is a mobile solution designed to monitor, report, and escalate machine failures in manufacturing environments. It provides real-time visibility into machine status, response times, and maintenance activities.
Key Features
Section titled “Key Features”- Real-time machine status monitoring
- Failure escalation workflow
- Maintenance response tracking
- Performance statistics and reporting
- Notification system for machine issues
User Interface Components
Section titled “User Interface Components”Dashboard

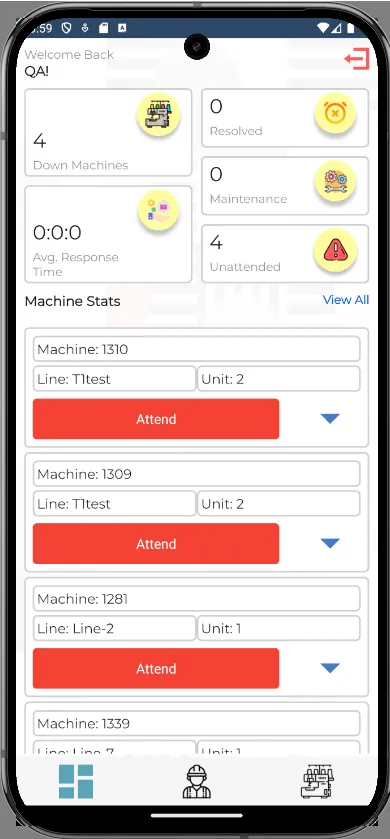

Section titled “Dashboard”
The dashboard provides an overview of:
- Number of down machines (currently showing 4)
- Average response time (currently 0:0:0)
- List of machines requiring attention with their:
- Machine number
- Line information
- Unit number

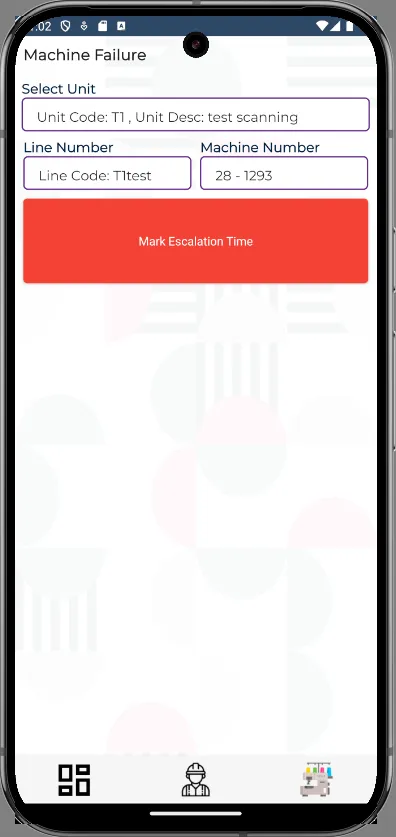

Machine Failure Escalation
Section titled “Machine Failure Escalation”
The escalation screen allows users to:
- Select the affected unit (with code and description)
- View line information (code and machine number)
- Mark escalation time for the failure

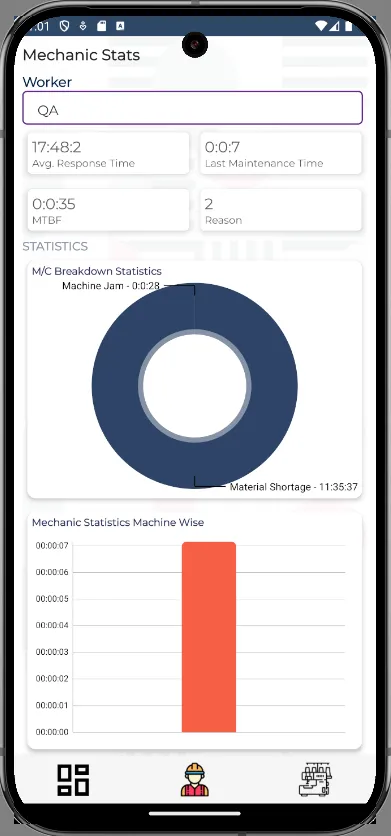

Reports
Section titled “Reports”
The reports section displays:
- Worker statistics (for QA in this case)
- Average response time (17:48:2)
- Last maintenance time (0:0:7)
- Mean Time Between Failures (MTBF) (0:0:35)
- Number of reasons (2)
- Machine breakdown statistics
- Machine Jam duration (0:0:28)
- Material Shortage duration (11:35:37)
- Mechanic statistics machine-wise with time metrics

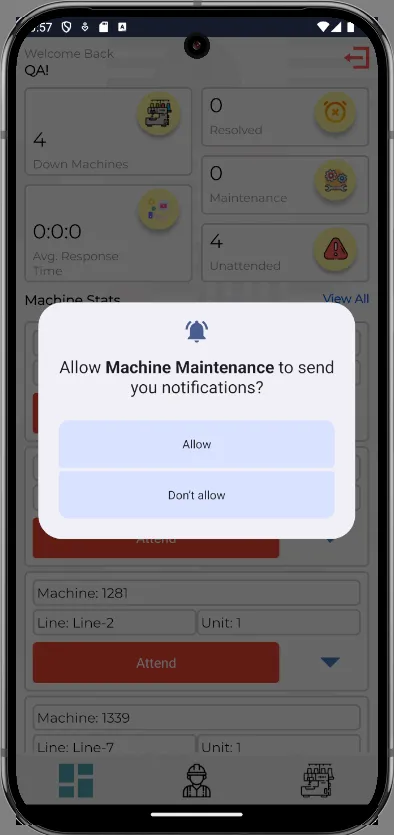

Permissions
Section titled “Permissions”
The app requests:
- Notification permissions for machine maintenance alerts
- Provides options to “Allow” or “Don’t allow” notifications
- Shows current unattended machines requiring attention
Technical Specifications
Section titled “Technical Specifications”Data Points Tracked
Section titled “Data Points Tracked”- Machine status (up/down)
- Response times
- Maintenance durations
- Failure reasons
- Escalation timestamps
User Roles
Section titled “User Roles”- QA personnel
- Maintenance technicians
- Line supervisors
Usage Scenarios
Section titled “Usage Scenarios”-
Machine Failure Detection:
- System detects and displays down machines on dashboard
- QA personnel can attend to each machine
-
Failure Escalation:
- User selects affected unit
- System records escalation time
- Notification sent to maintenance team
-
Maintenance Tracking:
- Technicians record maintenance activities
- System calculates response times and MTBF
-
Reporting:
- Generate performance statistics
- Analyze common failure reasons
- Track improvement over time
Notification System
Section titled “Notification System”The app includes a push notification system to:
- Alert relevant personnel about machine failures
